Shape palette based on the shapes used in LibreOffice Calc.

Usage

calc_shape_pal(unicode = FALSE)

Arguments

unicode

If TRUE, return pch codes derived from Unicode glyphs, which exist for every shape of the palette. They are drawn by the device font, so they render as blank boxes in a font without coverage and at unrelated sizes in most fonts; the font from register_shapes_font() has the shapes of this palette at a common size. If FALSE, return base pch codes, which every font can draw but which exist only for some shapes. The default depends on the palette.

Value

A palette function. It takes the number of shapes n and returns an integer vector of n shape (pch) codes, and can be used as the palette argument of ggplot2::discrete_scale().

Note

This palette supports seven values by default and thirteen with unicode = TRUE. Six of Calc's thirteen symbols – the solid down, left and right triangles, the bowtie, the hourglass and the four-pointed star – have no base pch equivalent and are dropped rather than approximated by a different shape. Restoring them with unicode = TRUE needs a font covering Geometric Shapes, Dingbats and Miscellaneous Mathematical Symbols-B; Noto Sans Symbols 2 is effectively the only free font with the last of these.

See also

Other shapes calc: scale_shape_calc()

Examples

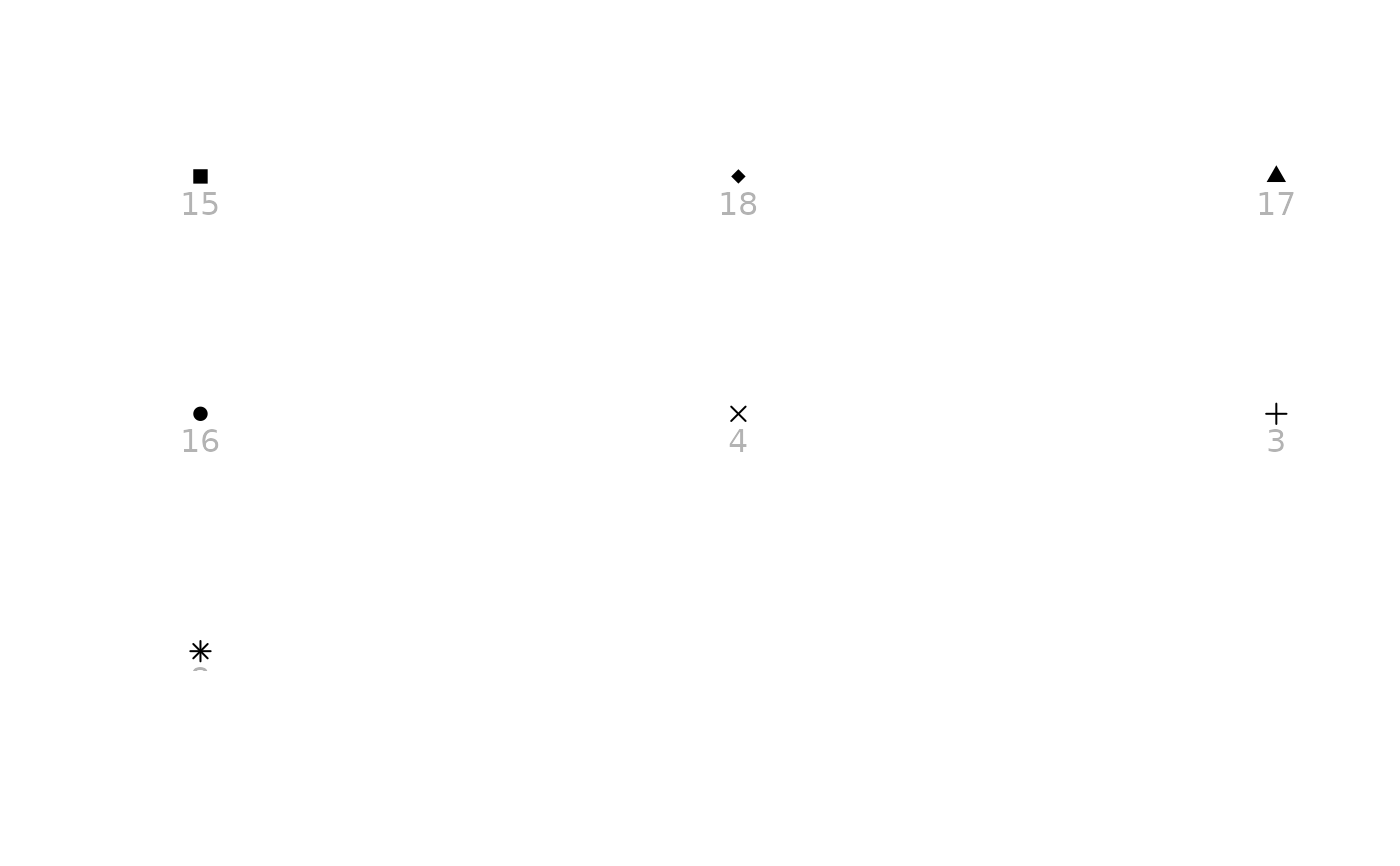

# The seven shapes with a font-independent equivalent.
show_shapes(calc_shape_pal()(7))


if (FALSE) { # \dontrun{
  # All thirteen, drawn from the device font. Needs a font covering Geometric
  # Shapes, Dingbats and Miscellaneous Mathematical Symbols-B, such as
  # Noto Sans Symbols 2.
  show_shapes(calc_shape_pal(unicode = TRUE)(13))
} # }
